20Kpps Middle Speed Galvo Scanner for Laser Show Lighting/RGB Laser System Scanner

Scanner Parameters:

Scan Speed:  23-25Kpps ILDA@8°
Scan Angle：±30° （Or Bigger）
Lens X Size：7mm*12mm*1mm
Lens Y Size：7mm*12mm*1mm
Reflection Ratio: >99%
Wavelength: 400nm-700nm
Input Signal: ±5V
Power Input：±15V 1A
Size of Driver：75mm*63mm*28mm

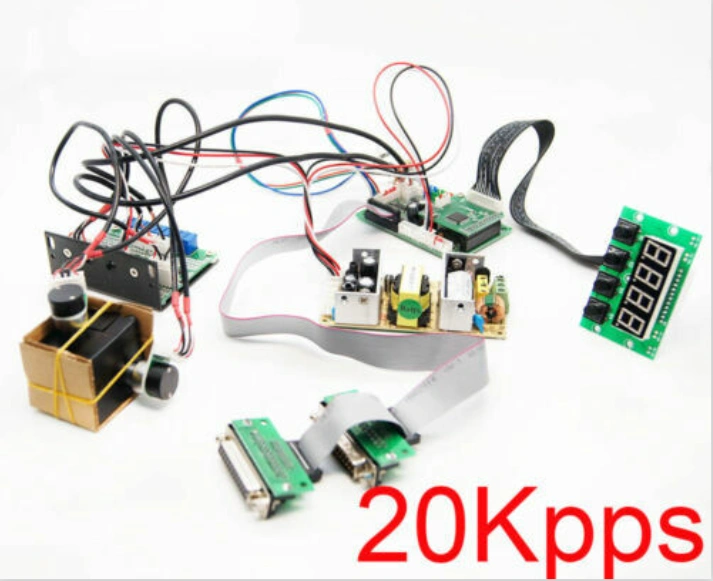

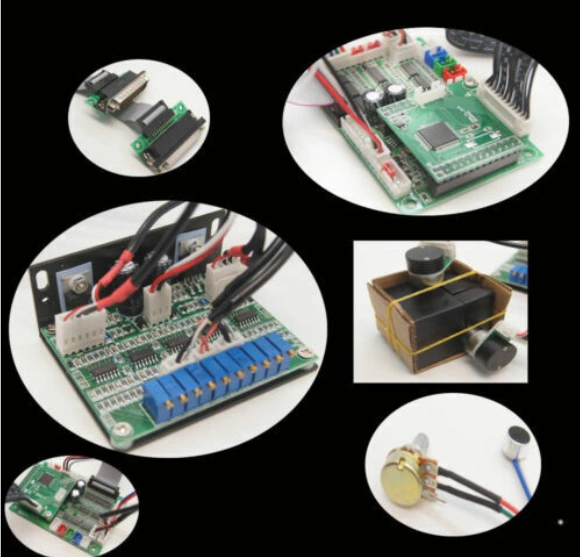

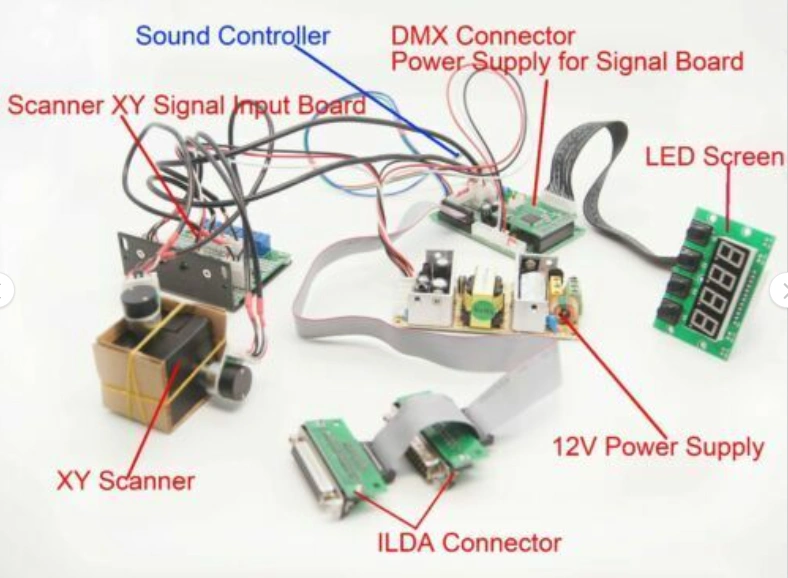

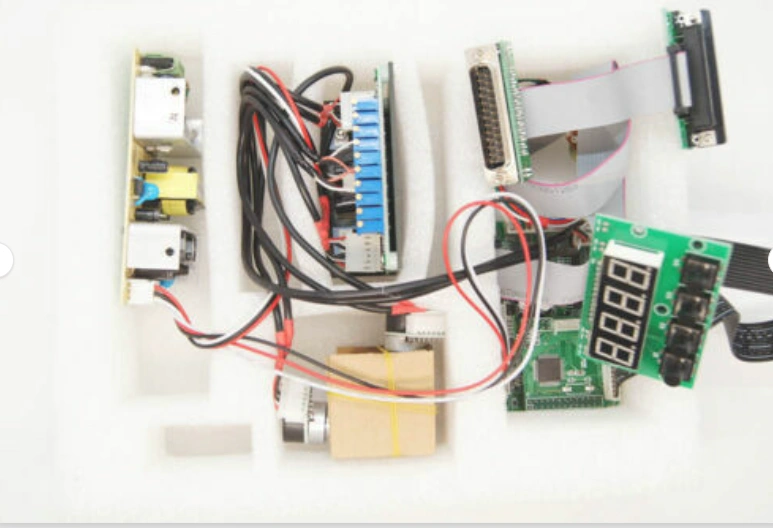

Package List:

1). 1 piece drivers ( X and Y)

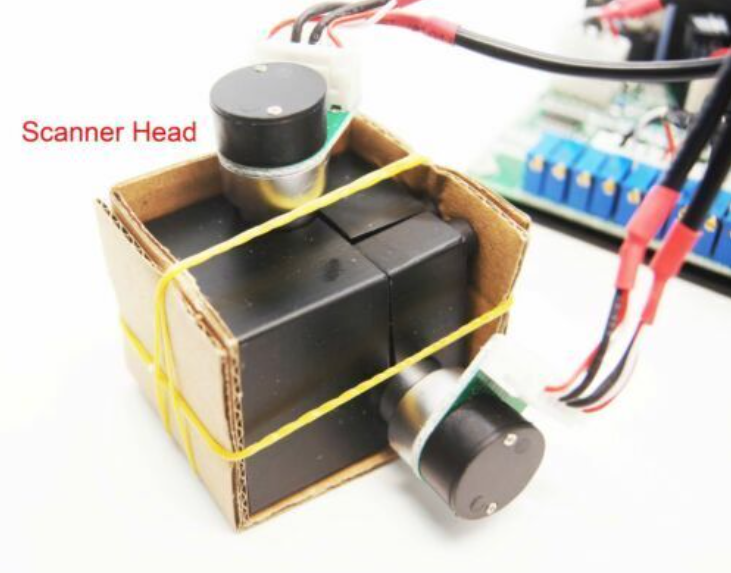

2). 2 sets galvo engines ( X and Y )
3). 2 pieces cables from the drivers to the galvo engines
4). 2 pieces signal input cable
5). 1 piece power supplier ( ±15VPSU )
6). 1 pece cable for the PSU to the drivers

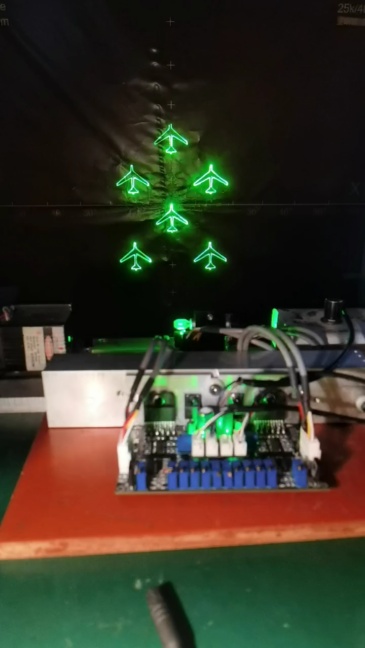

Final Application Image:
