50Kpps High Speed Laser Galvo Scanner/Compact Desigh w/ Large Mirrors for Laser Show/RGB Laser

SKU: THYXGT50
✔ 50Kpps High Speed
✔ Large Mirrors
✔ 400nm-700nm Wide Laser Wavelength
✔ Compact Dsign
✔ High efficiency
✔ Perfect Heat Dispensation
0.0 (0 Reviews)
1 Sold
$450.00 $319.99
Received successfully
Coupon Code
CONTINUE SHOPPING
Quantity
-
+
Add to Favorites (0)
  • 50K pps High Speed Galvo Scanner Laser Show/RGB Laser Scanner/Large Mirrors
  • 50K pps High Speed Galvo Scanner Laser Show/RGB Laser Scanner/Large Mirrors
  • 50K pps High Speed Galvo Scanner Laser Show/RGB Laser Scanner/Large Mirrors
  • 50K pps High Speed Galvo Scanner Laser Show/RGB Laser Scanner/Large Mirrors
  • 50K pps High Speed Galvo Scanner Laser Show/RGB Laser Scanner/Large Mirrors
  • 50K pps High Speed Galvo Scanner Laser Show/RGB Laser Scanner/Large Mirrors
  • 50K pps High Speed Galvo Scanner Laser Show/RGB Laser Scanner/Large Mirrors
  • 50K pps High Speed Galvo Scanner Laser Show/RGB Laser Scanner/Large Mirrors
  • 50K pps High Speed Galvo Scanner Laser Show/RGB Laser Scanner/Large Mirrors
  • 50K pps High Speed Galvo Scanner Laser Show/RGB Laser Scanner/Large Mirrors
  • 50Kpps High Speed Laser Galvo Scanner/Compact Desigh w/ Large Mirrors for Laser Show/RGB Laser
  • 50K pps High Speed Galvo Scanner Laser Show/RGB Laser Scanner/Large Mirrors
  • 50K pps High Speed Galvo Scanner Laser Show/RGB Laser Scanner/Large Mirrors
  • 50K pps High Speed Galvo Scanner Laser Show/RGB Laser Scanner/Large Mirrors
  • 50K pps High Speed Galvo Scanner Laser Show/RGB Laser Scanner/Large Mirrors
  • 50K pps High Speed Galvo Scanner Laser Show/RGB Laser Scanner/Large Mirrors
  • 50K pps High Speed Galvo Scanner Laser Show/RGB Laser Scanner/Large Mirrors
  • 50K pps High Speed Galvo Scanner Laser Show/RGB Laser Scanner/Large Mirrors
  • 50K pps High Speed Galvo Scanner Laser Show/RGB Laser Scanner/Large Mirrors
  • 50K pps High Speed Galvo Scanner Laser Show/RGB Laser Scanner/Large Mirrors
  • 50K pps High Speed Galvo Scanner Laser Show/RGB Laser Scanner/Large Mirrors
  • 50Kpps High Speed Laser Galvo Scanner/Compact Desigh w/ Large Mirrors for Laser Show/RGB Laser
1/1
  • 50K pps High Speed Galvo Scanner Laser Show/RGB Laser Scanner/Large Mirrors
  • 50K pps High Speed Galvo Scanner Laser Show/RGB Laser Scanner/Large Mirrors
  • 50K pps High Speed Galvo Scanner Laser Show/RGB Laser Scanner/Large Mirrors
  • 50K pps High Speed Galvo Scanner Laser Show/RGB Laser Scanner/Large Mirrors
  • 50K pps High Speed Galvo Scanner Laser Show/RGB Laser Scanner/Large Mirrors
  • 50K pps High Speed Galvo Scanner Laser Show/RGB Laser Scanner/Large Mirrors
  • 50K pps High Speed Galvo Scanner Laser Show/RGB Laser Scanner/Large Mirrors
  • 50K pps High Speed Galvo Scanner Laser Show/RGB Laser Scanner/Large Mirrors
  • 50K pps High Speed Galvo Scanner Laser Show/RGB Laser Scanner/Large Mirrors
  • 50K pps High Speed Galvo Scanner Laser Show/RGB Laser Scanner/Large Mirrors
  • 50Kpps High Speed Laser Galvo Scanner/Compact Desigh w/ Large Mirrors for Laser Show/RGB Laser
  • Description

Scanner Parameters:

AC power: Autoswitching 100V – 240V 50/60Hz
Power Supply: ±24VDC @1A each,
Input: Analog ±5V,
Mirror Aperture: X: 8.5X8.5X1mm, Y: 8X13X1mm
Mirror coating: High quality dielectric film,
Reflectivity: >99.3% @45°incidence(400nm-700nm)
Speed: 50Kpps@±8°(ILDA  Test Frame)
Deflection angle: max 70° optical (factory calibration @±25°)
Scanner Angle:±35°

Deflection angle

Operating voltage

Speed

20 optical deflection

-±24V

>35Kpps

15 optical deflection

±24V

>35Kpps

10 optical deflection

±24V

>40Kpps

8 optical deflection

±24V

>45Kpps

5 optical deflection

±24V

>50Kpps

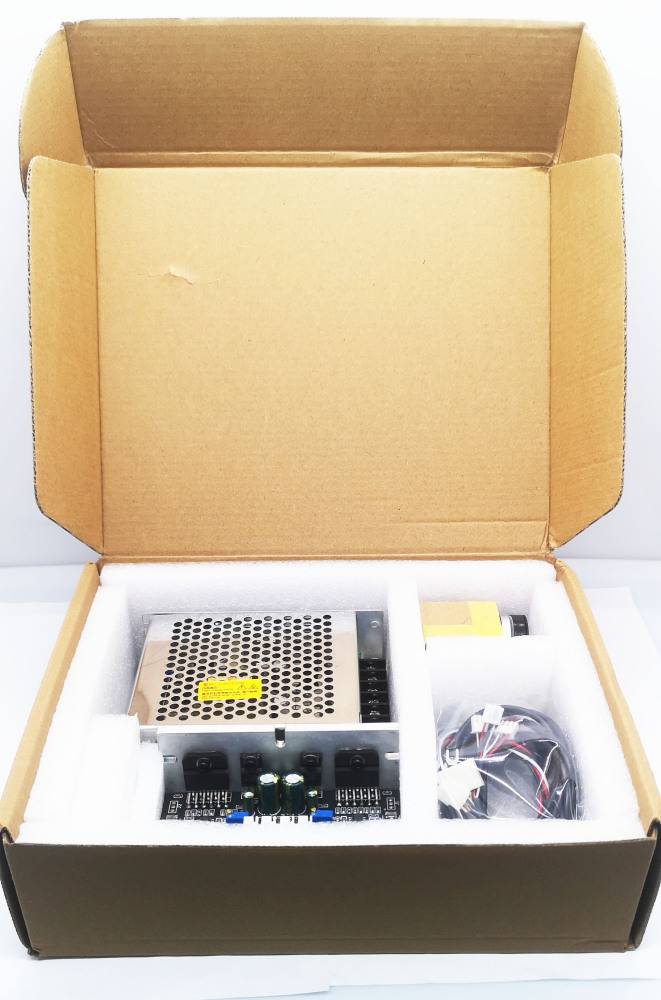

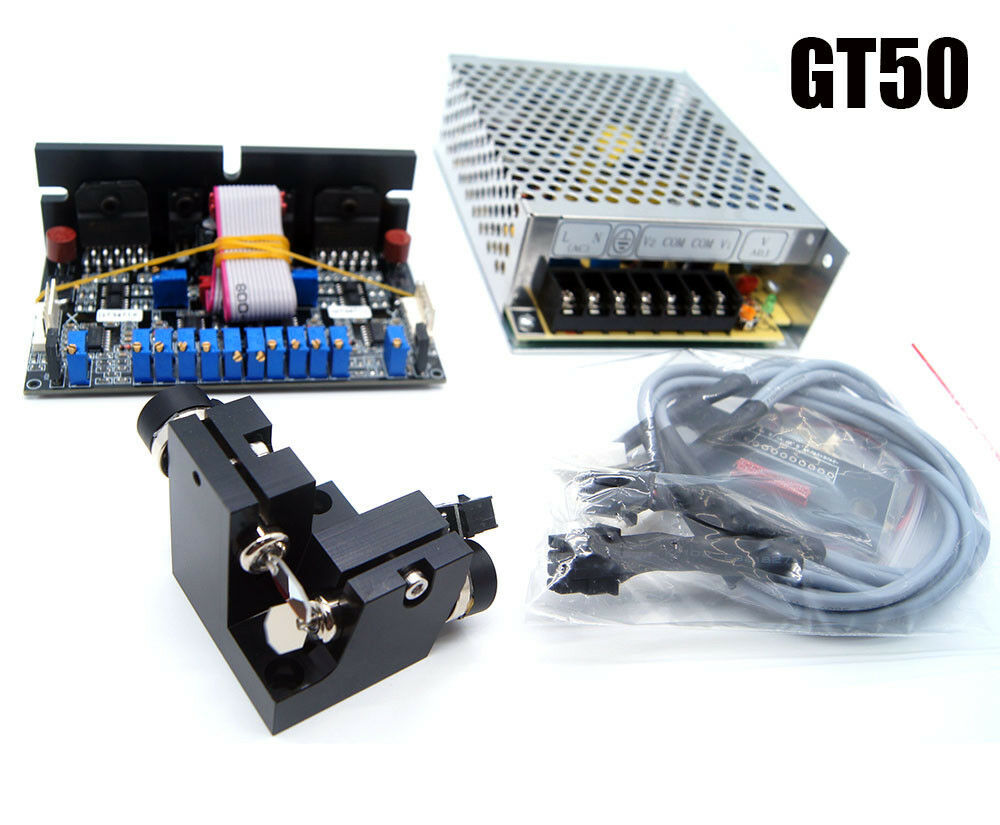

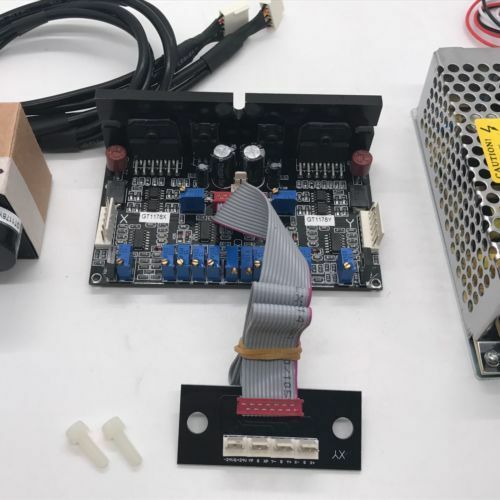

Package List:

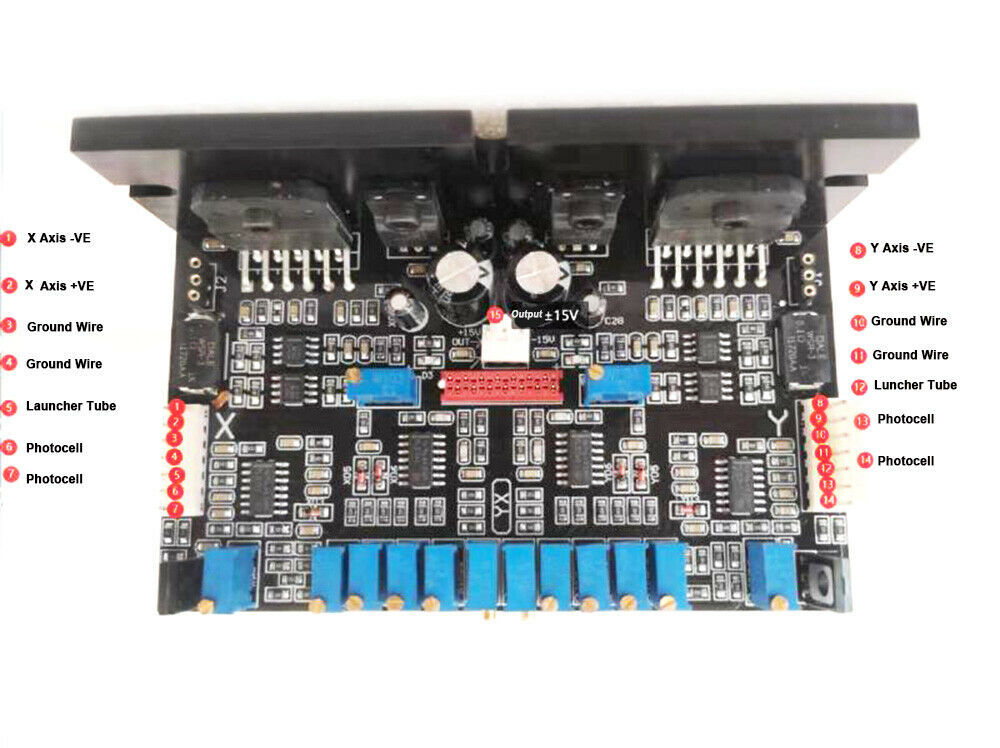

1). 1 piece drivers ( X and Y)

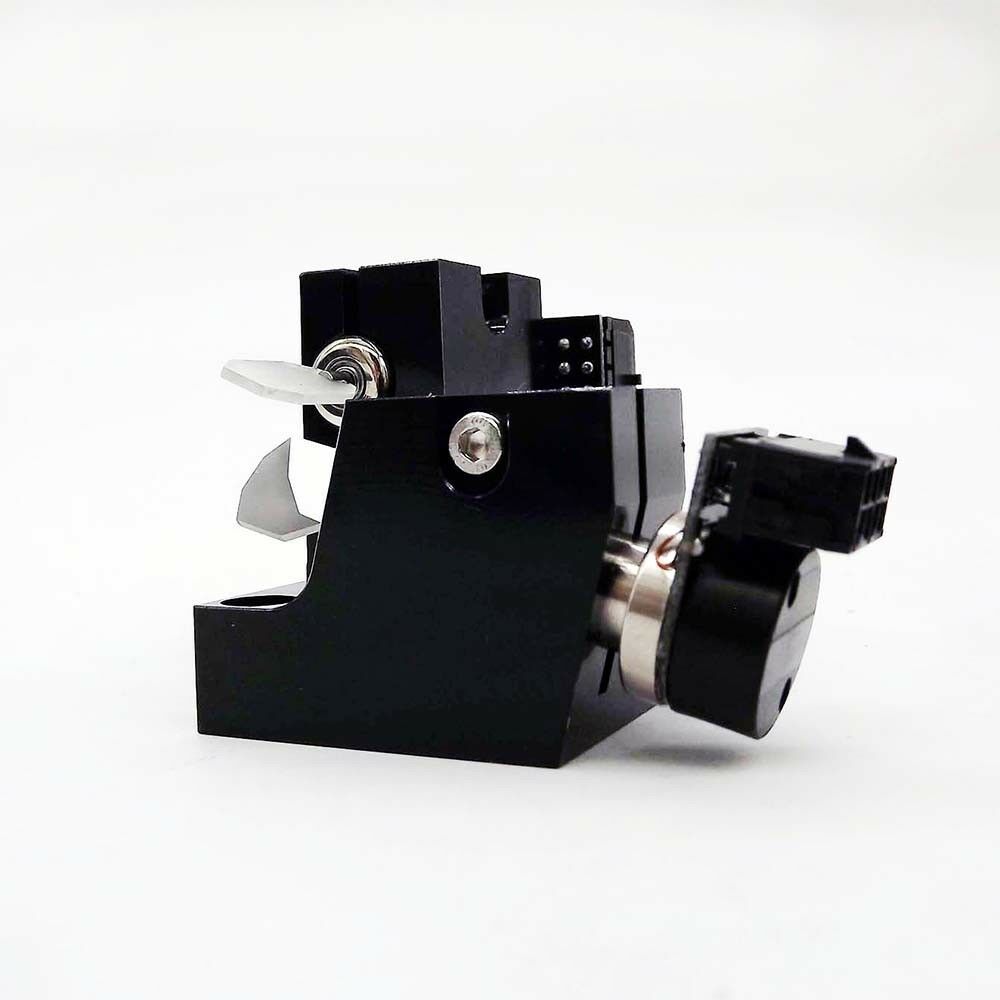

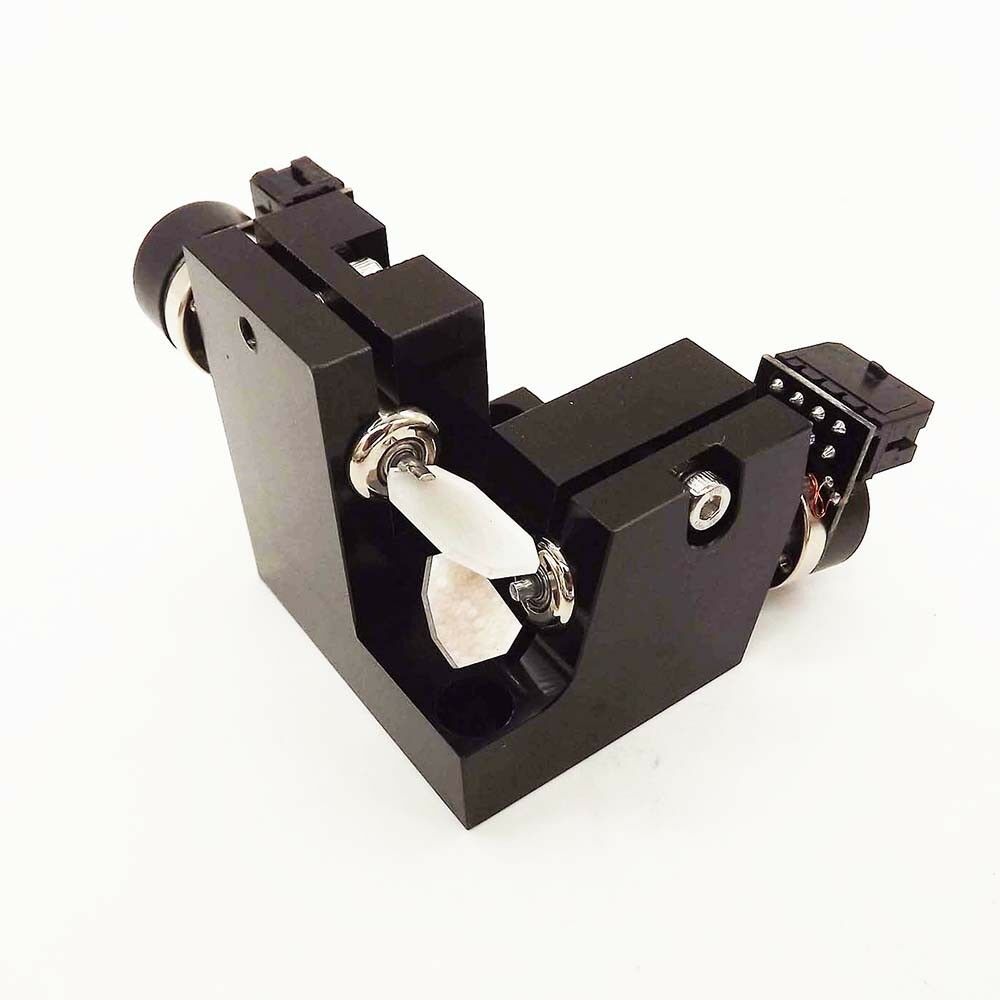

2). 2 sets galvo engines ( X and Y )
3). 2 pieces cables from the drivers to the galvo engines

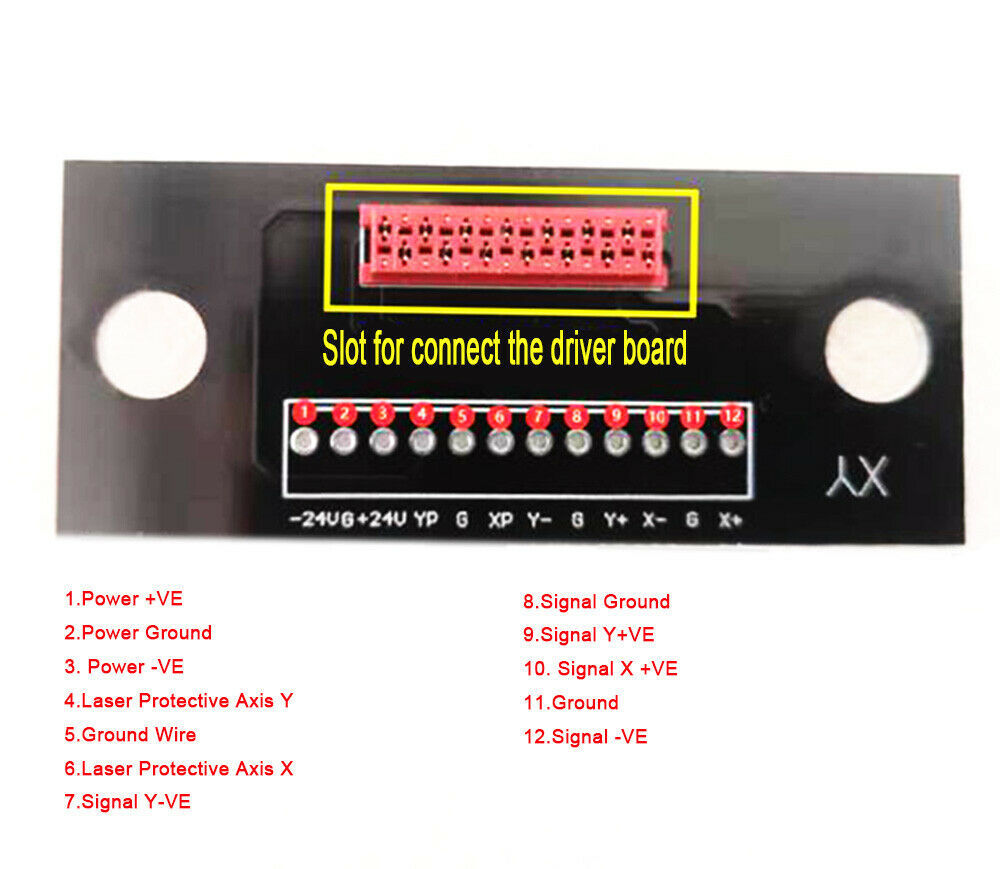

4). 3 pieces signal input cable

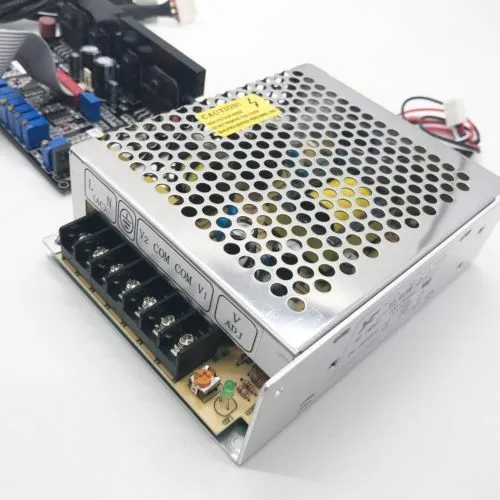

5). 1 piece power supplier ( PSU )
6). 1 pece cable for the PSU to the drivers

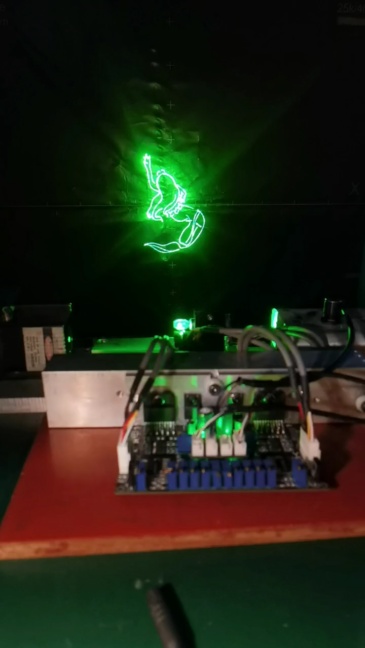

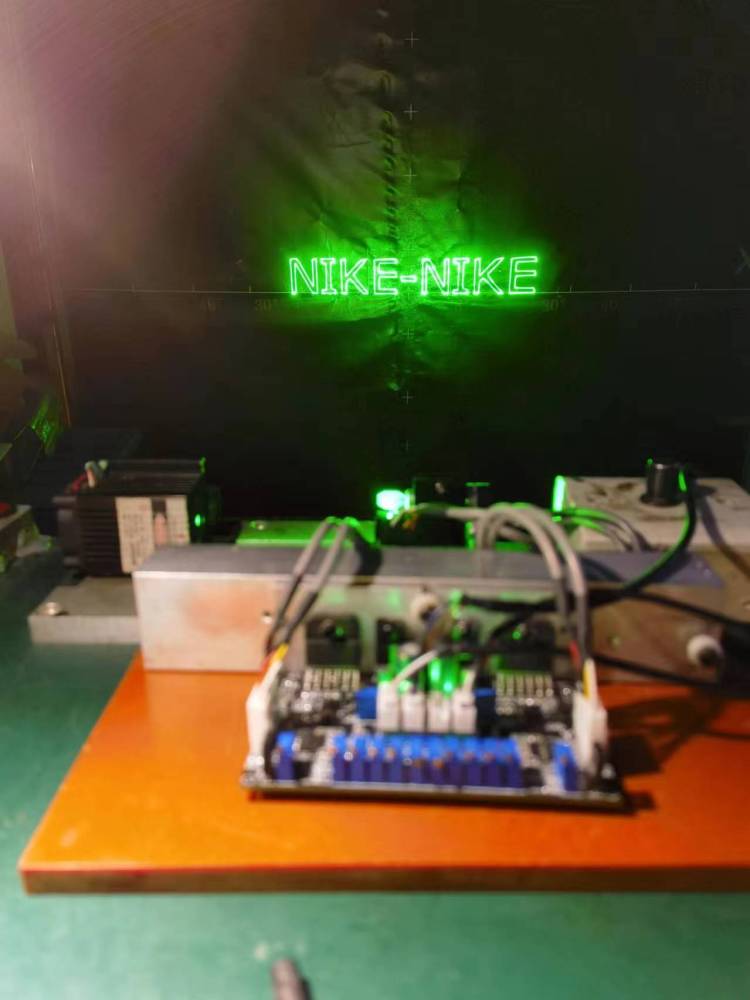

Final Application Image:
