Details:
1. To correct a laser beam. The axis of the laser beam been enlarged for achieve the required beam shape.
2. To reshape the laser beam from an oval to close a round.(The modify result also depends on the diode’s type)
3. This Prisms Pair especially suitable for high power laser diode. Such as 405nm/445nm/450nm/465nm/470nm high power output blue laser diodes. It can help those diode’s beam shape from a line to a near round dot in a short distance.
4. With the prisms the expansion ratio of 2:1 to 6:1 can be achieved by expanded one of the axis twice then the divergence will be halved. This will help you get more uniform length of the axis. The slow-expanding-axis remains unaffected status.
5. The prisms have anti-reflective coating.
6. With high quality optical materials, the laser power loss is in a very lower range.

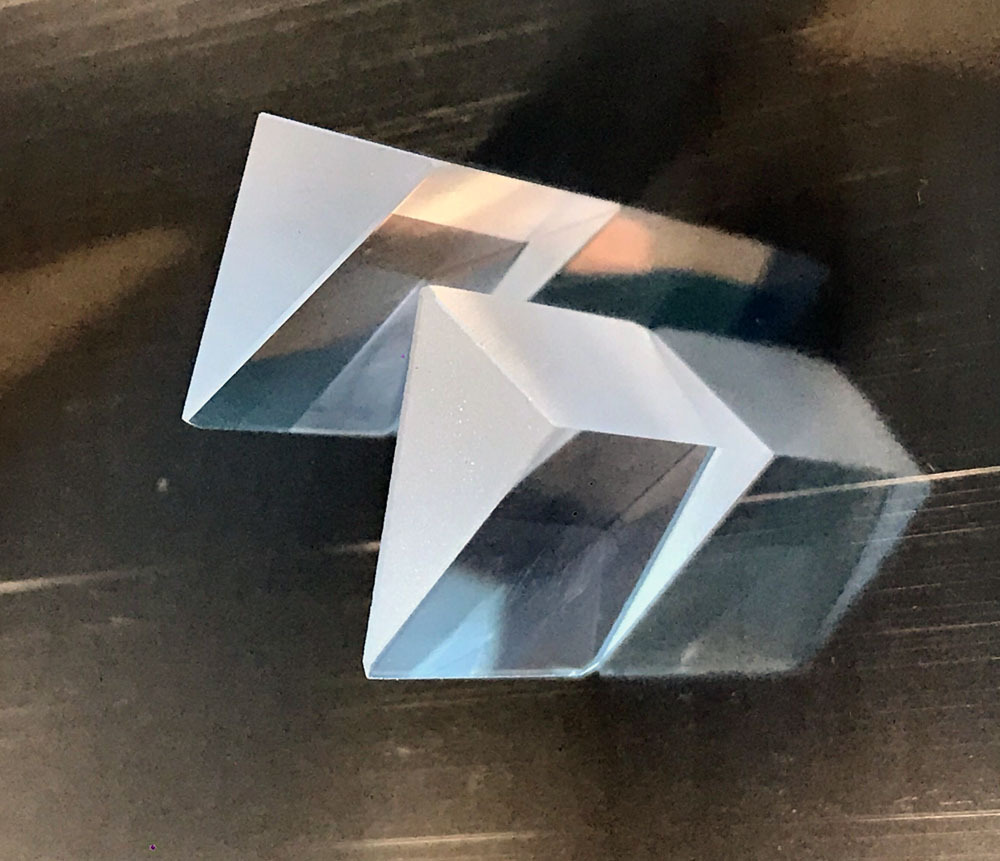

Parameters:
Mateirals: H-ZLaF2A
Flatness: L/4 Surface
Quality:60/40
Wedge Angle:30°
Free Aperture:90%
AR Coating:405nm-470nm
Power Lose: <10%
Demensions(mm): 10.65 x 7.5 x 12.3

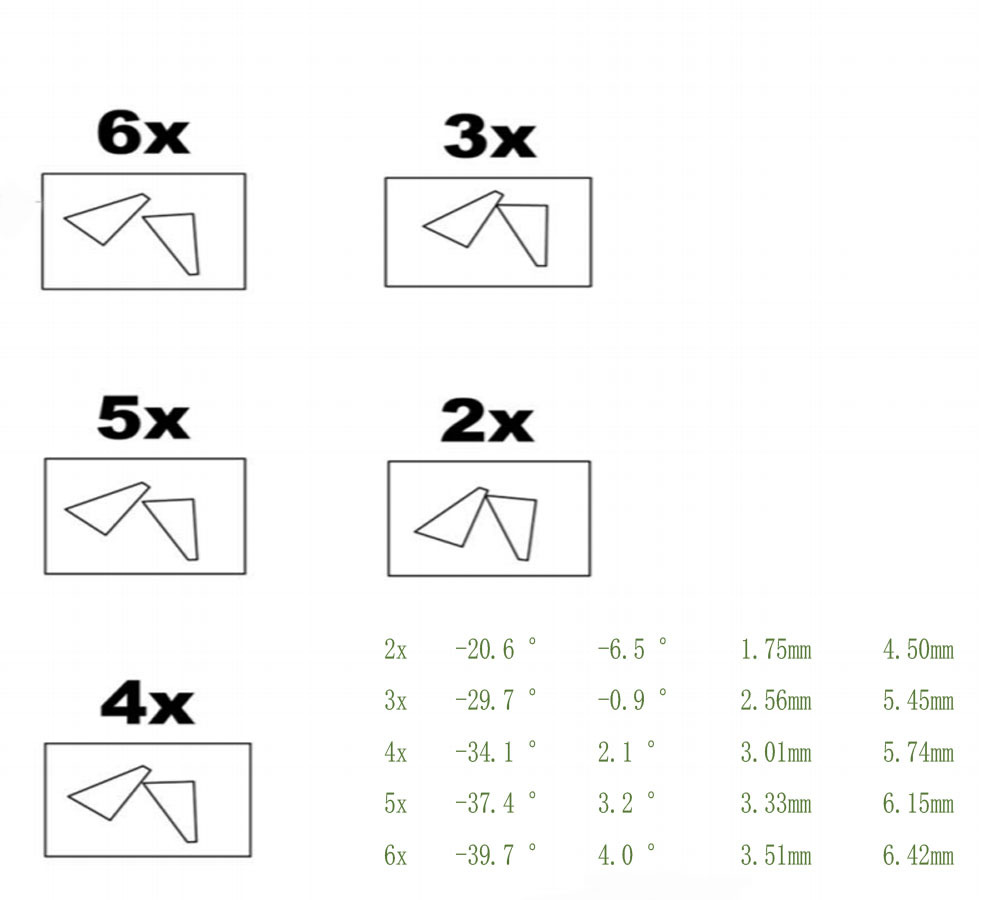

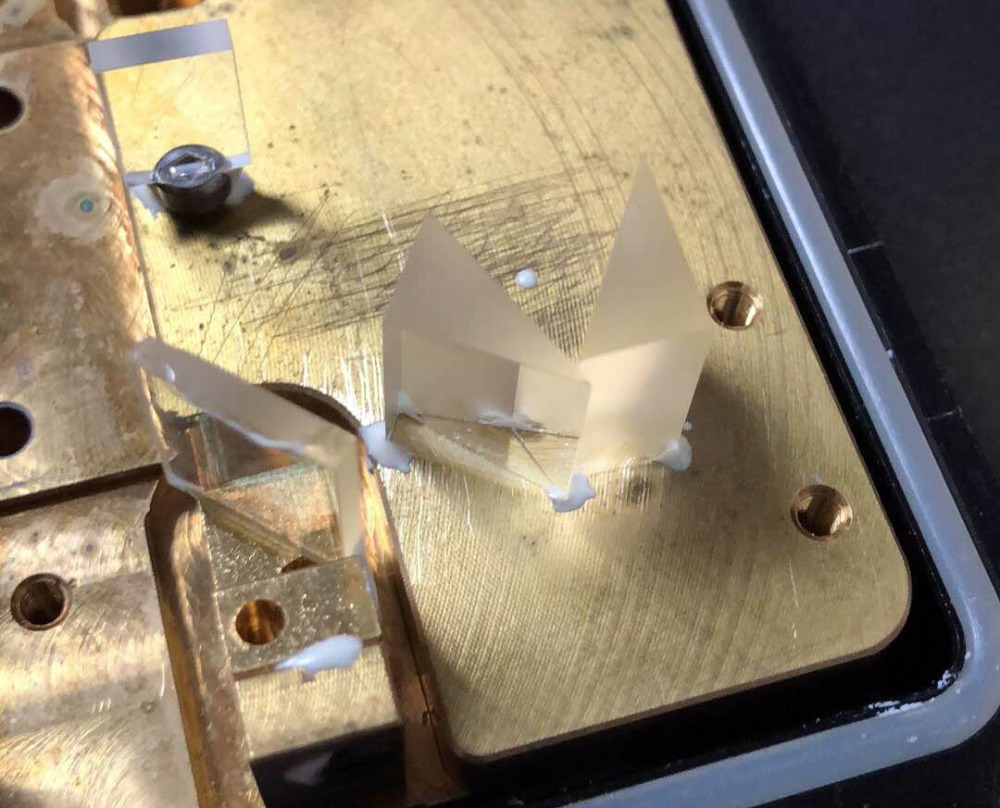

Position and the Explanation Ratio(See the last picture of title):
enlargement α1 α2 Vertical prism offset (V) Beam offset
2x -20.6 ° -6.5 ° 1.75mm 4.50mm
3x -29.7 ° -0.9 ° 2.56mm 5.45mm
4x -34.1 ° 2.1 ° 3.01mm 5.74mm
5x -37.4 ° 3.2 ° 3.33mm 6.15mm
6x -39.7 ° 4.0 ° 3.51mm 6.42mm
