0-1500mA Laser Diode Driver (405nm / 450nm / 638nm / 650nm / IR Diodes）
SKU: THHYDBZ
✔ Dimensions :15mm x 20mm
✔ Reverse polarity protection
✔ Soft start protection for diode
✔ 0 - 1500mA (FET will need heatsink at highter currents)
✔ 3.5 - 12V depending on laser diode

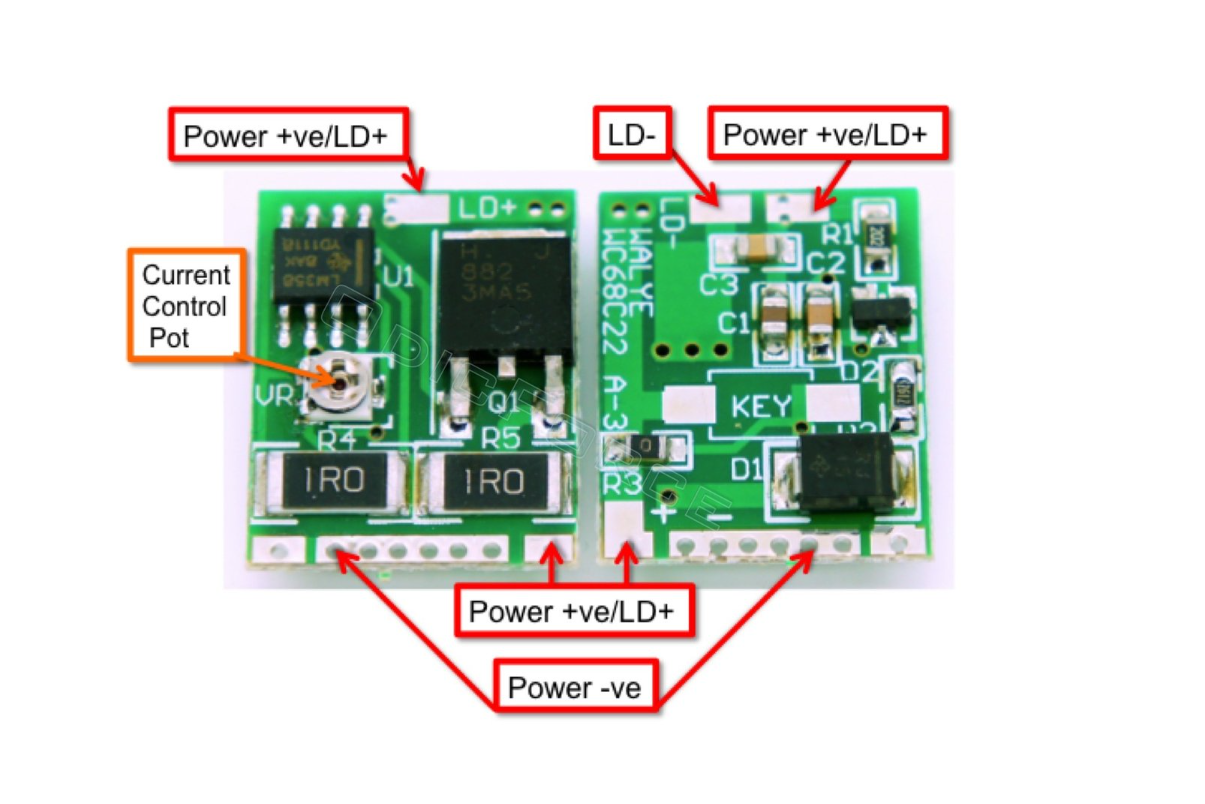

✔ Output current set using the variable resistor on the circuit board
✔ For a 1W 445nm Laser Diode (that requires an input voltage of ~5V) the board power supply should be greater than 6.5V, e,g, 2 x 3.7V RCR123/16340 lithium batteries 3 x 3.7V 18650 batteries
✔ Reverse polarity protection
✔ Soft start protection for diode
✔ 0 - 1500mA (FET will need heatsink at highter currents)
✔ 3.5 - 12V depending on laser diode
✔ Output current set using the variable resistor on the circuit board
✔ For a 1W 445nm Laser Diode (that requires an input voltage of ~5V) the board power supply should be greater than 6.5V, e,g, 2 x 3.7V RCR123/16340 lithium batteries 3 x 3.7V 18650 batteries
